Flame-Retardant Aramid Paper Tape 0.18mm Thick with Acrylic Adhesive

MOQ:	500m2
Price:	by quote
Standard Packaging:	Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,
Delivery Period:	30days
Payment Method:	T/T,D/P,L/C
Supply Capacity:	10,000m2

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

CHINA

Certification

Model Number

Aramid adhesive tape 472

Base Material:

Polyaramid Fiber Paper

Adhesive Type:

Acrylic Pressure Sensitive Adhesive

Total Thickness:

0.18mm

Width:

10mm~980mm

Heat Grade:

F Class

Elongation At Break:

Ball Tack:

≤10 Cm

Tensile Strength:

≥90 N/10mm

Breakdown Voltage:

≥2.8 KV

Aramid Paper Thickness:

0.13mm

Highlight:

flame-retardant aramid paper tape

0.18mm thick insulation tape

acrylic adhesive insulation tape

Product Description

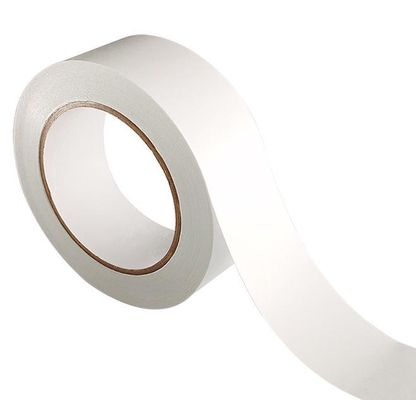

Flame-Retardant Aramid Paper Tape With Acrylic Adhesive For Extreme Heat Resistance

This high-performance tape combines a robust aramid paper substrate with a specially formulated flame-retardant acrylic adhesive. Designed for superior heat resistance, it maintains excellent electrical insulation properties while enduring prolonged exposure to elevated temperatures. Ideal for critical applications in electronics, automotive, and aerospace industries where thermal management and fire safety are essential.

Typical Properties

Type	472
Appearance	White paper tape, smooth surface, no wrinkles, bubbles, glue particles or impurities
Total thickness (mm±mm)	0.18±0.01
Aramid paper thickness (mm±mm)	0.13±0.005
Adhesive type	Flame Retardant Acrylic Pressure Sensitive Adhesive
Breakdown voltage (kV)	≥2.8
Tensile strength (N/10mm)	≥90
Elongation at break (%)	≥5
Adhesion (to steel surface) (N/25mm)	≥12.0
Ball tack (cm)	≤10
Heat resistance test 155℃/45min	No tilting on tape end
Long-term temperature resistance	F class/155℃
Flame Retardant	Meet UL510 Flame Retardant
Supply size	Available in rolls, width 10-980mm (customizable), length 50m±0.5m

Key Advantages

High Strength and Flexibility: Aramid paper substrate offers exceptional tensile strength and tear resistance while maintaining paper-like flexibility for easy application on irregular surfaces.
Excellent Electrical Insulation: Provides reliable dielectric protection for components requiring insulation.
Outstanding High-Temperature Resistance: Maintains stable performance in prolonged high-temperature environments without melting or carbonizing.
Strong Adhesion and Initial Tack: High bonding strength ensures secure, long-lasting adhesion with immediate stick for efficient application.
Inherent Flame Retardancy: Excellent fire safety performance effectively prevents flame spread.

Applications

Critical insulation applications: Chemical-resistant wrapping for Class F motor/transformer coils and high-energy lithium batteries
Precision components: Used in mobile phone part stamping processes
High-voltage electronics: Safe insulation for HVT, HID, and electronic transformer coils
