Product Details:
|
| Backing Material: | Al Foil Laminated Glass Cloth | Adhesive Type: | High Performance Flame Retardant Solvent Acrylic Adhesive |
|---|---|---|---|
| Service Temperature Range: | -30 ~ +120 °C | Backing Thickness: | 150 Micron |
| Fire Rating: | Class O | Total Thickness: | 180um |
| Cut Roll Width: | 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4"). | ||
| High Light: | Self Adhesive Aluminum Foil Glass Cloth Tape,Aluminum Foil Glass Cloth Tape Cold Weather,150 Micron hvac aluminum foil tape |
||
Self Adhesive Cold Weather HVAC Fiberglass Cloth Aluminium Foil Tape
PRODUCT DESCRIPTION

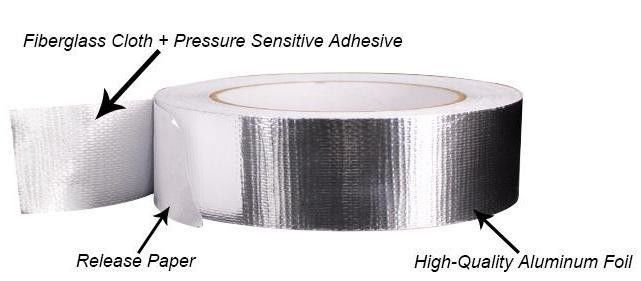

Aluminum-Glass Cloth adhesive tape (18u Foil / FR Glue / Glass Cloth), combined with a high performance flame retardant solvent acrylic adhesive, with no releasing paper, it is workable for cold weather wrapping condition.
FEATURES
• Aluminum-Glass Cloth backing provides excellent reflection of both heat and light.
• High quality adhesive with super strong adhesion and holding power offers reliable and durable Aluminum-Glass Cloth Facing joints and seams sealing in industrial pipe thermal insulation application,
• Low moisture vapor transmission rate makes AG1826WL an excellent vapor barrier.
• Service Temperature range from -30 ~ +120 °C (-22~ +248 °F)
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | TEST METHOD |
| Backing Thickness | 150 ±10% Micron | PSTC-133 |
| Total Thickness | 180 ±10% Micron | PSTC-133 |
| Adhesive weight g/m2 | 60±5 g/m2 | Scale |
| Adhesion to Steel | ≥20 N/25mm | PSTC-101 |
| Ball Tack(Steel ball #) | ≥23 # | JIS Z0237 |
| Service Temperature | -30 ~ +120 °C | ------------ |
| Fire Rating | Less 25 / 50 | UL 723 / ASTM E84 |
| Fire Rating | Class O | BS476 Pt 6 & 7 |
TYPICAL APPLICATIONS: HVAC industry for joining and sealing Alum.-Glass Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
PRODUCT FORM & SIZE AVAILABLE
Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Roll width:1000mm,1200mm
Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m
