Product Details:
|
| Backing Material: | 18u Foil / FR Glue / 8x8 Mesh Glass Cloth | Adhesive: | Solvent Acrylic Adhesive |
|---|---|---|---|
| Service Temperature Range: | -30 +120 C (-22~ +248 F) | Backing Thickness: | 0.15±0.015mm |
| Adhesive Weight: | 70±5g/m2 | Fire Rating: | Class O (BS476 Pt 6 & 7) |
| Releasing Paper: | No Releasing Paper | Tape Thickness: | 0.19±0.019mm |
| High Light: | Hot Melt Glass hvac aluminum duct tape,hvac aluminum duct tape 18um,18um hvac tape heat resistant |
||

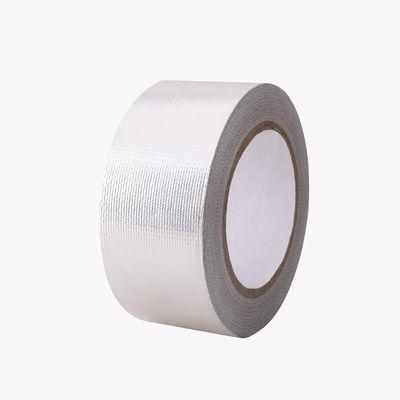

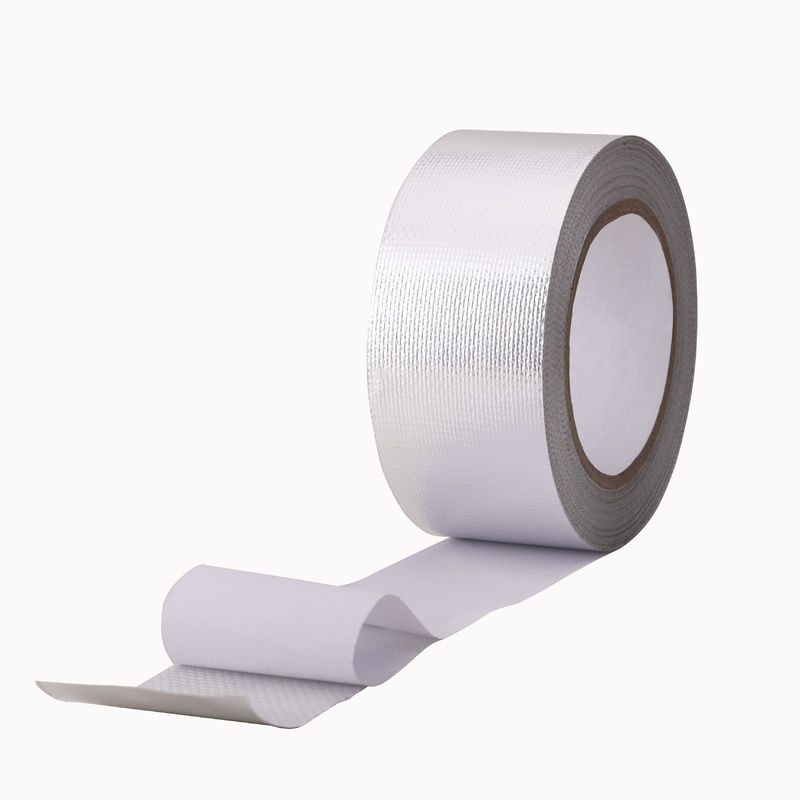

Hot Melt Glass HVAC Fiber Cloth Aluminium Foil Adhesive Tape, Fiberglass Cloth Reinfoiced With Releasing Paper
PRODUCT DESCRIPTION
Aluminum-Glass Cloth backing (18u Foil / FR Glue / 8x8 Mesh Glass Cloth), combined with a high performance flame retardant deep cold weather solvent acrylic adhesive.
FEATURES
• Aluminum-Glass Cloth backing provides excellent reflection of both heat and light.
• High quality adhesive with super strong adhesion and holding power offers reliable and durable Aluminum-Glass Cloth Facing joints and seams sealing in industrial pipe thermal insulation application,
• Low moisture vapor transmission rate makes AG1826WL/H an excellent vapor barrier.
• Service Temperature range from -30 ~ +120 °C (-22~ +248 °F)
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | TEST METHOD |
| Backing Thickness | 0.15±0.015mm | PSTC-133 |
| Total Thickness | 0.19±0.019mm | PSTC-133 |
| Adhesive weight | 70±5g/m2 | Scale |
| Adhesion to Steel | ≥20 N/25mm | PSTC-101 |
| Ball Tack(Steel ball #) | ≥27 # | JIS Z0237 |
| Service Temperature | -30 ~ +120 °C | ------------ |
| Fire Rating | Class O | BS476 Pt 6 & 7 |
TYPICAL APPLICATIONS: HVAC industry for joining and sealing Alum.-Glass Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
PRODUCT FORM & SIZE AVAILABLE
Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Roll width:1000mm,1200mm
Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m
