Product Details:
|
| Adhesive Type: | High Performance Solvent Rubber-resin Adhesive | Service Temperature Range: | -20 ~ +80 °C |
|---|---|---|---|
| Backing Thickness: | 0.050mm | Total Thickness: | 0.090mm |
| Cut Roll Width: | 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4"). | Scrim: | 5mmx5mm |
| Backing Material: | Scrim Reinformed Al Foil 25um | Releasing Paper: | White Releasing Paper |
| High Light: | High Flexibility aluminum tape waterproof,aluminum tape waterproof Multi Purpose,Heat Resistant self adhesive aluminium foil |
||

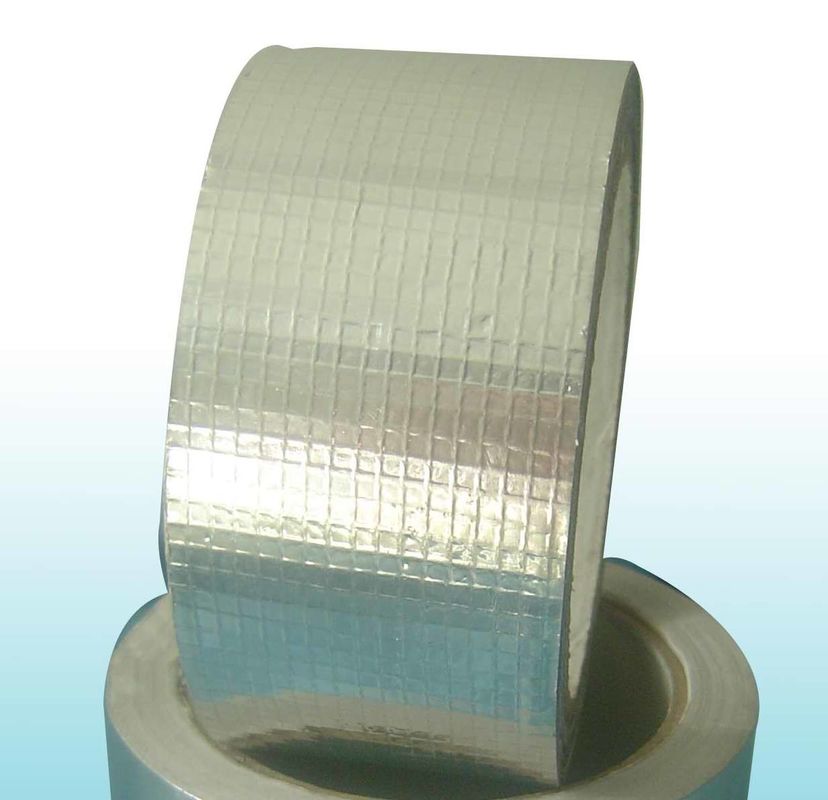

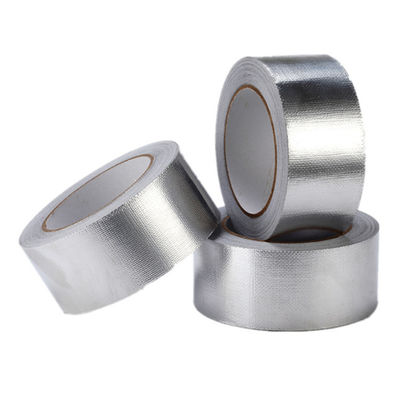

Foil-Scrim Tape FS2505B
High Quality Foil-Scrim Tape high flexibility with reinforcement
PRODUCT DESCRIPTION
Foil-Scrim backing (Foil: 25u / 2-way Scrim: 5mmx5mm), combined with high performance solvent rubber-resin adhesive, protected by an easy-release silicone release paper.
FEATURES
• Foil-Scrim backing provides excellent reflection of both heat and light.
• High quality adhesive with super strong adhesion and holding power offers reliable and durable Foil-Scrim Facing joints and seams sealing in HVAC ductwork application.
• Low moisture vapor transmission rate makes FS2505B an excellent vapor barrier.
• Service Temperature range from -20 ~ +80 °C (-4~ +176 °F).
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | TEST METHOD |
| Backing Thickness | 0.050mm | PSTC-133 |
| Total Thickness | 0.090 mm | PSTC-133 |
| Tensile strength | 120N/25mm | PSTC-131 |
| Elongation | 3% | PSTC-131 |
| Adhesion to Steel | ≥25 N/25mm | PSTC-101 |
| Ball Tack | 20cm | PSTC-6 |
| Service Temperature | -20 ~ +80 °C | ------------ |
| Applying Temperature | +10 ~ 40 °C | ------------ |
TYPICAL APPLICATIONS: HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
PRODUCT FORM & SIZE AVAILABLE
Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Roll width:1000mm,1200mm
Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m
