Product Details:
|
| Available Roll Width: | 1.2m, 1.22m | Structure: | Al Foil + Craft Paper + Scrim |
|---|---|---|---|
| Total Weight: | 100g/m2 | Scrim: | 12.5mm X 12.5mm |
| Al Foil: | 7um | ||
| High Light: | Heat Sealing foil faced paper,1.22m foil faced paper,1.22m foil backed building paper |
||

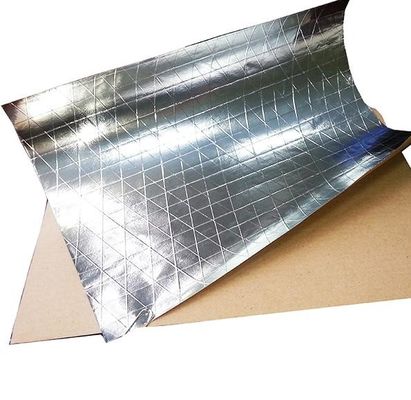

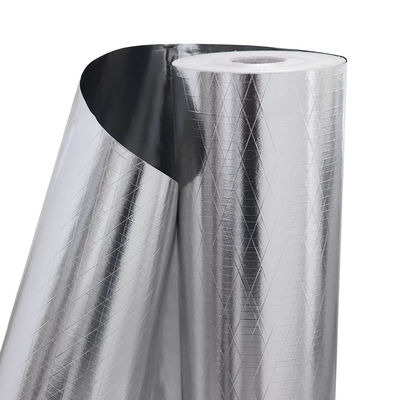

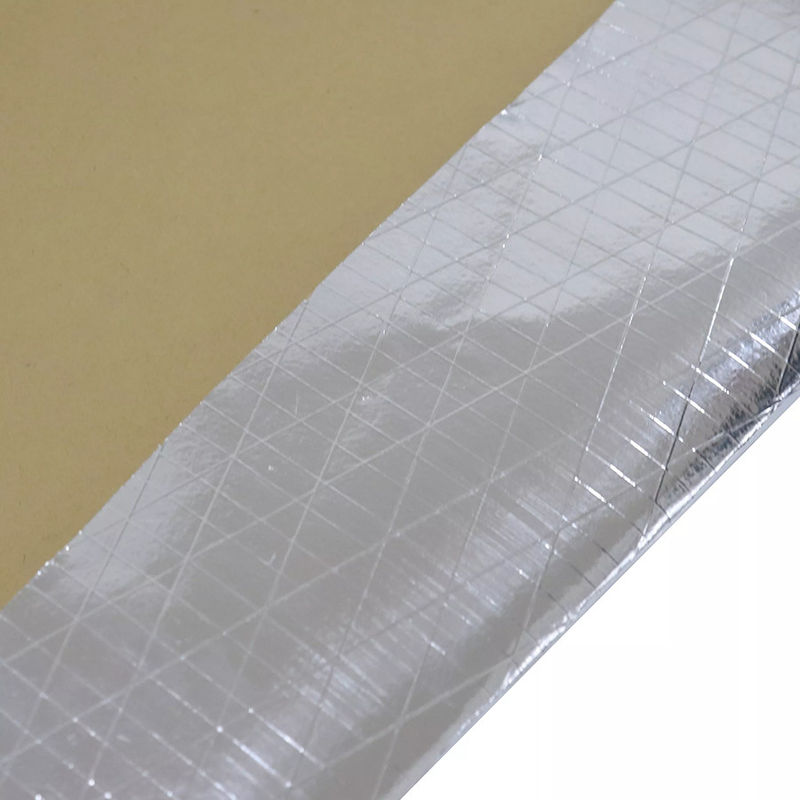

Heat-sealing Foil-Kraft-Scrim Facing lamination with insulation materials by heating
Product Description
A high grade Foil-Scrim-Kraft Facing with 2-way scrim and 60gsm Kraft, mainly used as a facing & vapor barrier for glasswool / rockwool / mineral wool / foam duct wrap insulation, also suitable for other insulation applications where a general use vapor retarder is needed. It is also a
good choice for radiant barrier applications because of its low emissivity.
Facing Composition
| Facing Composition | Description | Value (Metric) |
| Foil | Aluminum | 7 micron |
| Reinforcing - MD | Fiberglass | 12.5mm spacing |
| Reinforcing - XD | Fiberglass | 12.5mm spacing |
| Adhesive | Polyethylene | ------ |
| Kraft | Natural | 50gsm |
| Heat-activated coating | Polyethylene | 20um |
Typical Physical Properties
| Physical Properties | Value (Metric) | Test Method |
| Basis Weight | 100±10% gsm | Scale |
| Permeance (WVTR) | 1.15 ng/N.s | ASTM E96, Procedure A |
| Tensile Strength - MD | ≥125 N/25mm | ASTM D828 |
| Tensile Strength - XD | ≥70 N/25mm | ASTM D828 |
| Burst Strength | ≥30 N/cm2 | ASTM D774 |
| Low Temperature Resistance |
Remains Flexible No Delamination |
ASTM D1790 4 hrs @-40 °F (- 40 °C) |
| High Temperature Resistance |
Remains Flexible No Delamination |
ASTM D1790 4 hrs @ +240 °F (+116 °C) |
| Dimensional Stability | Less than 0.5% | ASTM D1204 @ 150F (65C) |
| Emissivity | 0.03 | ASTM E408 |
Available Roll Width: 1.2m, 1.22m
Remarks
1. The data above are typical values only, and should not be used for specifications purpose.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: +0.5m/-0m, Jumbo Roll ±0.5%.
3. The products should be stored at room temperature, kept away from wet and heat source.
4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.
