Product Details:
|
Available Roll Width: | 1.2m | Structure: | Al Foil + Glass Cloth + Heat Activated Coating |
---|---|---|---|
Al Foil Thickness: | 18um | Total Weight: | 180g/m2 |
High Light: | 1.2m Aluminum Foil Fiberglass Cloth,Aluminum Foil Fiberglass Cloth 1.2m,1.2m aluminium foil facing |

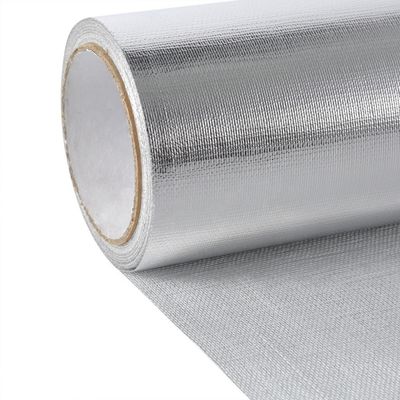

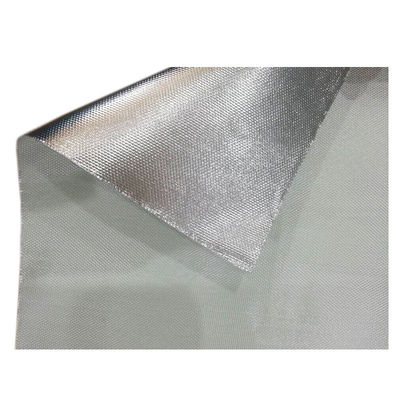

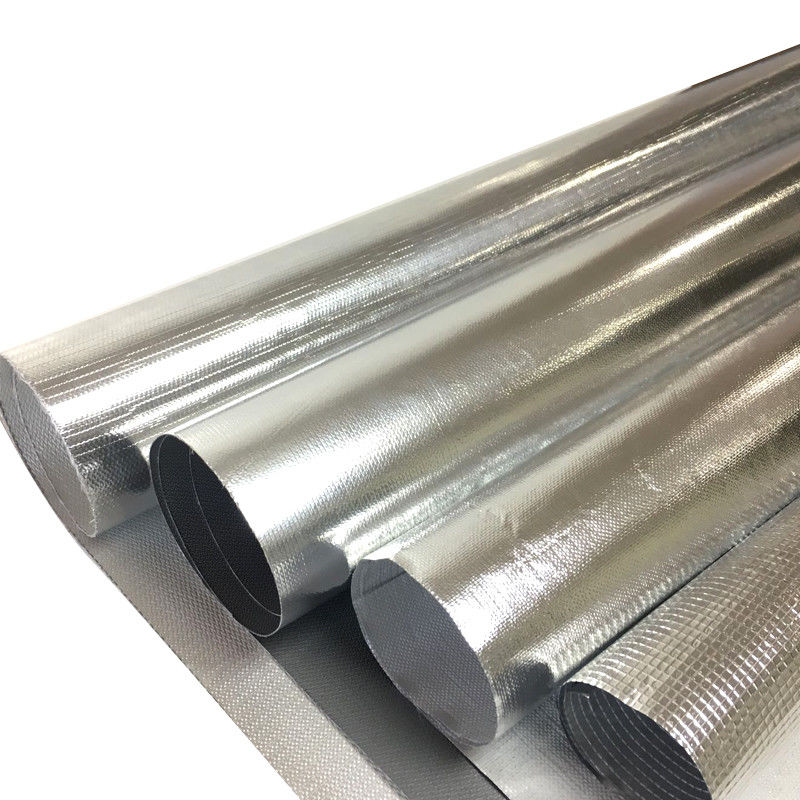

Foil-Glass Cloth Facing & Vapor Barrier for heat reflection and heat insulation
PRODUCT DESCRIPTION
A premium grade heat-sealing Al Foil-Glass Cloth Facing ,tough and durable. The structure consists of 18u foil and 8x8 mesh glass cloth, coated withheat-activated polyethylene on this back. Suitabe for in-line heating lamination with insulation materials. No need applying extra adhesive. Good abrasion and corrosion resistance.
FACING COMPOSITION
Facing Composition | Description | Value (Metric) |
Foil | Aluminum | 0.018mm |
Adhesive | F/R Glue | 0.010mm |
Glass Cloth | 8x8 mesh/cm | 0.110mm |
Heat-activated coating | Polyethylene | 0.038mm |
TYPICAL PHYSICAL PROPERTIES
Physical Properties | Value (Metric) | Test Method |
Basis Weight | 180±10% gsm | Scale |
Permeance (WVTR) | 1.15 ng/N.s | ASTM E96, Procedure A |
Tensile Strength - MD | 265 N/25mm | ASTM D828 |
Tensile Strength - XD | 180 N/25mm | ASTM D828 |
Burst Strength | 125 N/cm2 | ASTM D774 |
Low Temperature Resistance |
Remains Flexible No Delamination |
ASTM D1790 4 hrs @-40 °F (- 40 °C) |
High Temperature Resistance |
Remains Flexible No Delamination |
ASTM D1790 4 hrs @ +240 °F (+116 °C) |
Dimensional Stability | Less than 0.5% | ASTM D1204 @ 150F (65C) |
Emissivity | 0.03 | ASTM E408 |
Available Roll Width: 1.2m
